·Magnetic powder epoxy coating reduces buzz noise to a low level(Alloy Powder Series).
·A wide range of product line up is available to meet the various requirements
·For DC/DC converter applications.
·Ideally used in the devices such as smartphone, car navigation, smart screen, flat-screen TVs, notebook PC, LED lighting,various power modules, etc.
·Custom design is also available.
·CRoHS compliant.

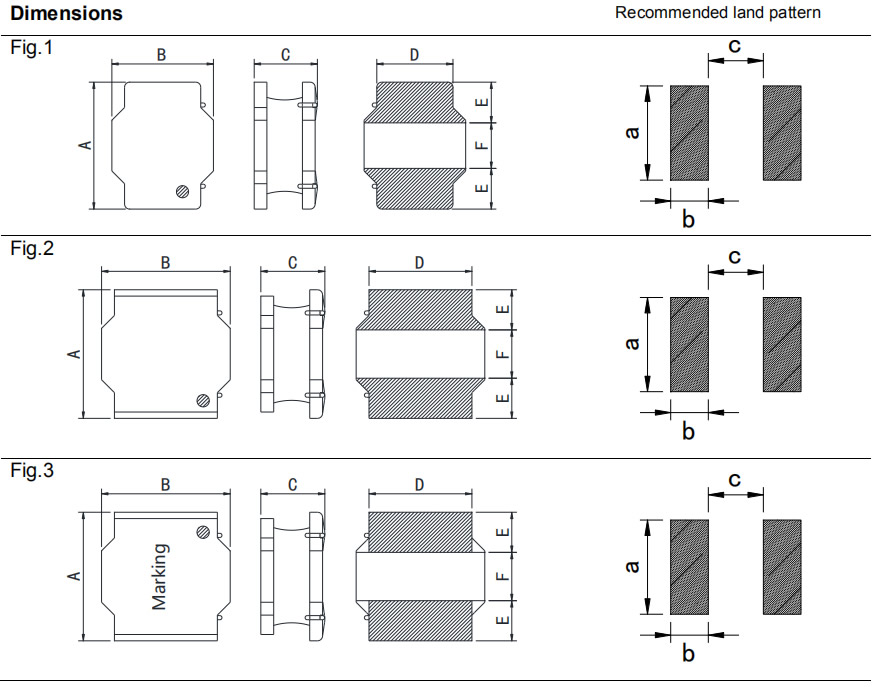

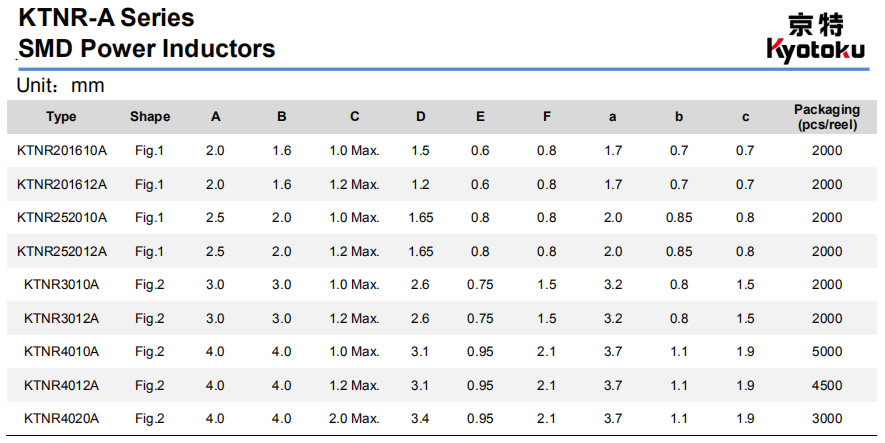

| Type | Photos | Dimension | Inductance Range µH | Isat-A | Irms-A | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| L mm | W mm | H mm | Lmin | Lmax | Isat-min | Isat-max | Irms-max | Irms-min | Download | ||

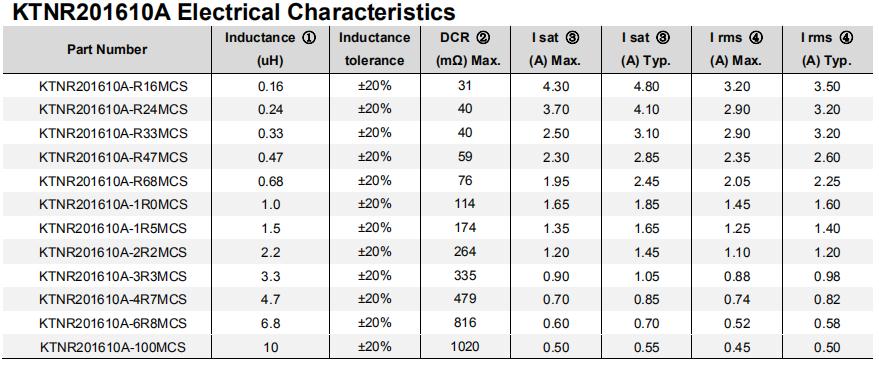

| KTNR201610A | |
2 | 1.6 | 1 | 0.16 | 10 | 0.5 | 4.3 | 0.45 | 3.2 |  |
| KTNR252010A |  |
2.5 | 2 | 1 | 0.33 | 10 | 0.9 | 4.8 | 0.8 | 3.5 | |
| KTNR252012A |  |
2.5 | 2 | 1.2 | 0.24 | 10 | 1.1 | 6.5 | 0.85 | 4.05 | |
| KTNR3012A |  |
3 | 3 | 1.2 | 0.33 | 10 | 1.2 | 7.2 | 1 | 4.2 | |
| KTNR4012A |  |
4 | 4 | 1.2 | 0.33 | 22 | 1.05 | 10.3 | 0.9 | 4.3 | |
| KTNR4020A | |
4 | 4 | 2 | 0.22 | 10 | 2.8 | 18.7 | 2 | 8.2 | |
